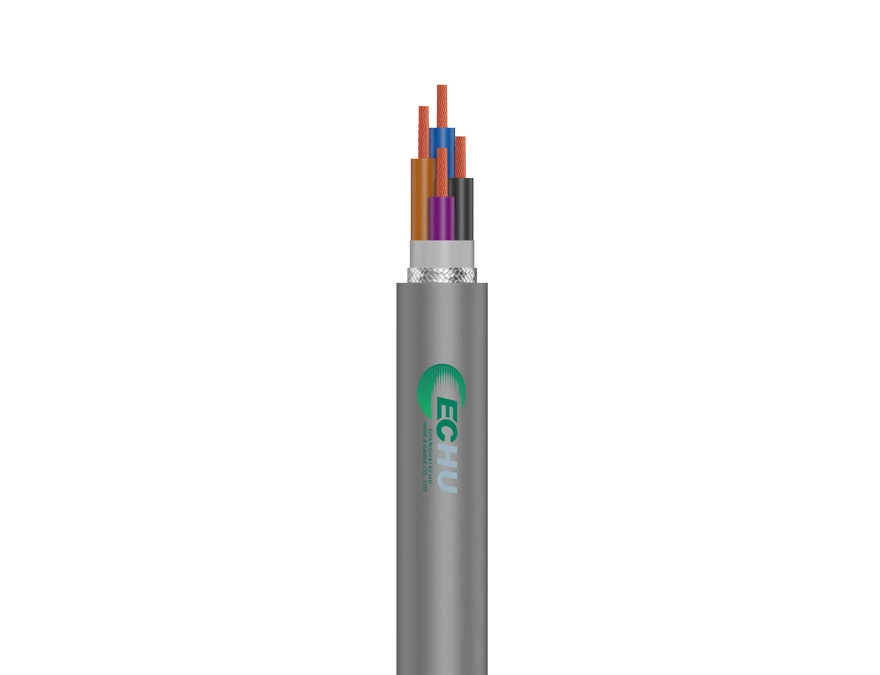

The EKM71373 High-Speed Flexible Drag Chain Cable is engineered specifically for dynamic applications. It features a single-sheathed, shielded design that offers excellent interference resistance. The cable is constructed with finely stranded conductors and modified PVC insulation for durability. A premium 90-degree nitrile outer sheath ensures long-lasting performance, with a drag chain life span of up to 15 million cycles, making it ideal for demanding industrial environments.
- Suitable for dry and damp indoor conditions
- Ideal for unrestricted continuous reciprocating motion
- Designed for frequent bending in industrial environments
- Applicable in woodworking machines
- Suitable for machine tool processing equipment
- Fits logistics and transportation systems
- Used in crane operations
| Electrical Performance | Voltage Rating | AC 300/300V for conductor size 0.5mm² and below |
| AC 300/500V for conductor size above 0.5mm² | ||
| Rated Temperature | 90°C | |
| Structure | Conductor | Bare Copper |
| Insulation | PVC | |
| Braiding | Tinned Copper Wire | |
| Sheath | Nitrile Rubber Compound, rated at 90°C | |
| Flame Retardancy | Compliant with IEC60332-1-2 | |
| Sheath Color | Default | Black |
| Customizable based on customer requirements | ||
