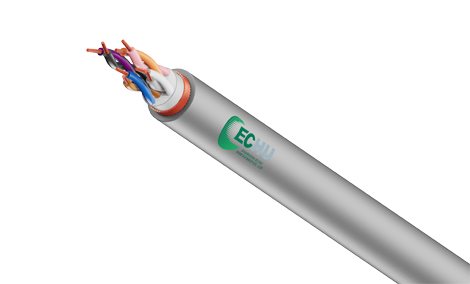

Signal Control Cables

Voltage: AC 300/300V
Temperature Rating: 70°C
Conductor: Bare copper
Insulation: PVC
Outer Sheath: PVC
Flame Retardancy: Complies with IEC 60332-1-2
Color Options: Standard black (other colors can be customized according to customer requirements)

Voltage: AC 300/300V for 2-3 cores with cross-sectional area between 0.5-0.75 mm²; AC 300/500V for other configurations
Temperature Rating: 70°C
Conductor: Bare copper
Insulation: PVC (Polyvinyl Chloride)
Outer Sheath: PVC (Polyvinyl Chloride)
Flame Retardancy: Complies with IEC 60332-1-2
Color Options: Standard black (other colors available upon customer request)

Voltage: AC 300/300V
Temperature Rating: 70°C
Conductor: Bare copper
Insulation: PVC
Braiding: Bare copper or tinned copper (optional)
Outer Sheath: PVC
Flammability: Complies with IEC 60332-1-2
Color Options: Standard black (other colors can be customized based on customer requirements)

Voltage: AC 300/300V
Temperature Rating: 70°C
Conductor: Bare copper
Fire-resistant Layer: Not specified
Insulation: PVC
Braiding: Tinned copper
Outer Sheath: PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Standard black (custom colors available)

Impedance: 120 ohms
Temperature Rating: 80°C
Conductor: Stranded bare copper
Fire-resistant Layer: Not specified
Insulation: Foam PE (Polyethylene)
Braiding: Aluminum foil plus tinned wire braid
Outer Sheath: PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Standard black (custom colors available)
