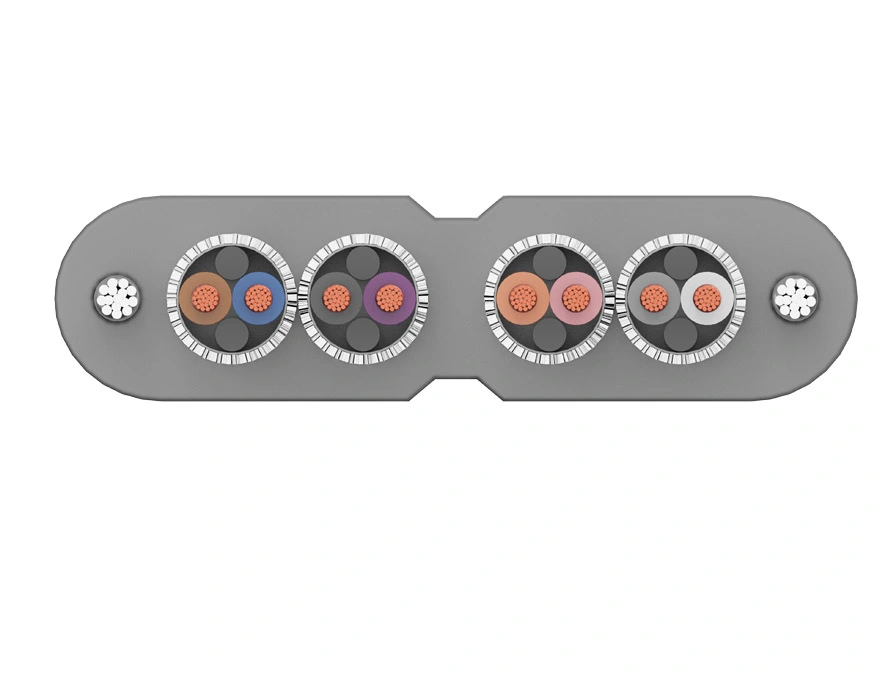

The YFFBPG Shielded Flat Crane Cable is a high-quality flat cable designed for crane operations. It features a premium nitrile compound insulation and sheath, providing excellent durability and resistance to harsh environments. The cable is reinforced with a braided shield and steel wire, ensuring superior mechanical strength and stability during movement. Ideal for demanding industrial applications, this cable delivers reliable performance and long-lasting protection for crane and mobile machinery.
- Used in cranes
- Suitable for electric trolleys
- Utilized in gantry cranes
- Applied in portal cranes
- Ideal for coal yard dumper machines
- Incorporated in metallurgy hoists
- Applicable for overhead traveling cranes
- Used in elevator systems of large mobile equipment
| Electrical Performance | Voltage | C 300/500V for conductor sizes between 0.5mm² to 1.0mm² |
| AC 450/750V for conductor sizes of 1.5mm² and above | ||
| Rated temperature | 70°C | |
| Structure | Conductor | Bare copper |
| Insulation | 70°C Nitrile Compound | |
| Braiding | Bare Copper or Tinned (optional) | |
| Strength Member | Steel Wire | |
| Sheath | 70°C Nitrile Compound | |
| Flame Retardance | Complies with IEC 60332-1-2 | |
| Default Sheath Color | Black (Other colors customizable on request) | |
