Flame Retardant Low Smoke Zero Halogen Cable

Free Quote

ECHU Flame Retardant Low Smoke Cables for Sale

NH-BV Fire Resistant LSZH Cable

NH-BV Fire Resistant LSZH Cable

Voltage:AC 300/500V for 0.5mm² to 1.0mm²,AC 450/750V for 1.5mm² and above
Rated Temperature:70°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: PVC
Flame Retardance: Meets IEC 60332-1-2 standards
Color: Customizable

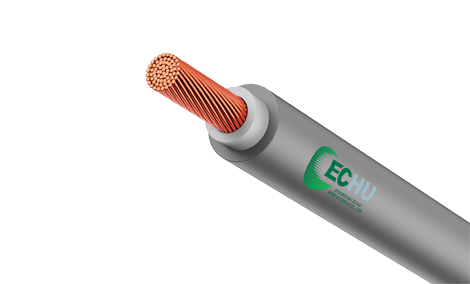

NH-BVR Fire Resistant LSZH Cable

NH-BVR Fire Resistant LSZH Cable

Voltage:
AC 300/500V: For conductor cross-sections of 0.5–1.0 mm²
AC 450/750V: For conductor cross-sections of 1.5 mm² and above
Rated Temperature: 70°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: PVC
Flame Retardancy: Complies with IEC 60332-1-2 standard
Color: Optional (customizable)

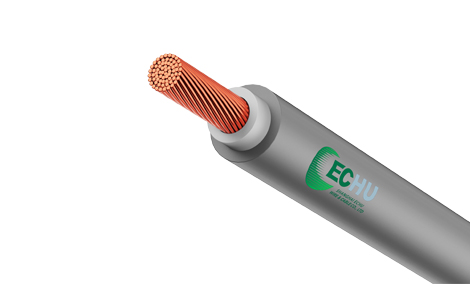

NH-RV Fire Resistant LSZH Cable

NH-RV Fire Resistant LSZH Cable

Voltage: AC 300/500V (0.5-1.0mm²) or AC 450/750V (1.5mm²+)
Rated Temperature: 70°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: PVC
Flame Retardancy: Compliant with IEC 60332-1-2
Color Options: Available in various colors
NH-RVV Fire Resistant LSZH Cable

NH-RVV Fire Resistant LSZH Cable

Voltage: AC 300/300V (0.5–0.75mm², 2-3 cores) or AC 300/500V (other specs)
Rated Temperature: 70°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: PVC
Sheath: PVC
Flame Retardancy: Compliant with IEC 60332-1-2
Sheath Color: Default black (custom colors available)
NH-KVVV Fire Resistant LSZH Cable

NH-KVVV Fire Resistant LSZH Cable

Voltage: AC 450/750V
Rated Temperature: 70°C
Conductor: Bare Copper
Fire-Resistant Layer: Mica Tape
Insulation: PVC
Sheath: PVC
Flame Retardance: IEC 60332-1-2 Compliant
Sheath Color: Black (custom colors available)
NH-RVVP Fire Resistant LSZH Cable

NH-RVVP Fire Resistant LSZH Cable

Voltage: AC 300/300V
Temperature Rating: 70°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: PVC
Braiding: Bare copper or tinned (optional)
Outer Sheath: PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Standard black (custom colors available)
WDZ-RY LSZH Flame Retardant Cable

WDZ-RY LSZH Flame Retardant Cable

Voltage Rating:
AC 300/500V (for 0.5–1.0mm² cross-sections)
AC 450/750V (for 1.5mm² and above)
Temperature Rating: 70°C
Conductor: Bare copper
Fire-Resistant Layer: Mica tape
Insulation: PVC
Braiding: Bare copper or tinned (optional)
Outer Sheath: PVC
Flame Retardance: Compliant with IEC 60332-1-2
Color Options: Standard black (custom colors available)
WDZ-BYR LSZH Flame Retardant Cable

WDZ-BYR LSZH Flame Retardant Cable

Voltage Rating:
AC 300/500V (for conductor sizes 0.5mm² to 1.0mm²)
AC 450/750V (for conductor sizes 1.5mm² and above)
Rated Temperature: 90°C
Conductor: Bare copper
Insulation: Low smoke, halogen-free polyolefin
Flame Retardancy: Complies with IEC 60332-1-2
Color Options: Available in various colors
WDZ-RYY LSZH Flame Retardant Cable

WDZ-RYY LSZH Flame Retardant Cable

Voltage Rating:
AC 300/500V (for conductor sizes 0.5mm² to 1.0mm²)
AC 450/750V (for conductor sizes 1.5mm² and above)
Rated Temperature: 90°C
Conductor: Bare copper
Insulation: Low smoke, halogen-free polyolefin
Flame Retardancy: Complies with IEC 60332-1-2
Color Options: Available in various colors

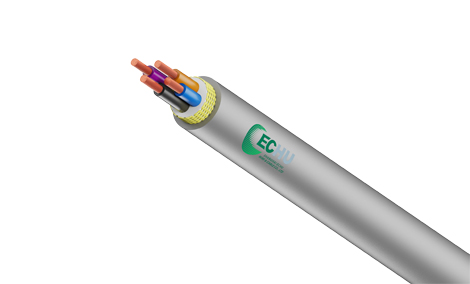

WDZ-RYYP Shielded LSZH Flame Retardant Cable

WDZ-RYYP Shielded LSZH Flame Retardant Cable

Voltage: AC 300/300V
Rated Temperature: 90°C
Conductor: Bare Copper
Insulation: Low Smoke Zero Halogen Polyolefin
Braiding: Bare Copper or Tinned Copper (Optional)
Sheath: Low Smoke Zero Halogen Polyolefin
Compliant with IEC 60332-1-2
Default: Black (Custom colors available)

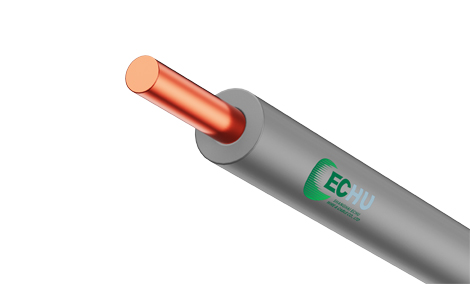

WDZ-BV LSZH Flame Retardant Single Core Cable

WDZ-BV LSZH Flame Retardant Single Core Cable

Voltage:
AC 300/500V (for 0.5–1.0mm² cross-sections)
AC 450/750V (for 1.5mm² and above)
Temperature Rating: 90°C
Conductor: Bare copper
Insulation: Low smoke zero halogen (LSZH) polyolefin
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Custom colors available

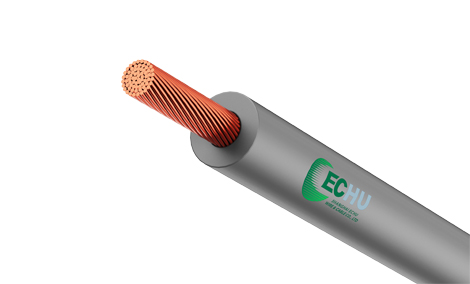

ZR-BVR Flame Retardant Multi-Strand Copper Wire

ZR-BVR Flame Retardant Multi-Strand Copper Wire

Voltage:
AC 300/500V (for 0.5–1.0mm² cross-sections)
AC 450/750V (for 1.5mm² and above)
Temperature Rating: 70°C
Conductor: Bare copper or tinned copper
Insulation: Flame-retardant PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Custom colors available
ZR-RV Flame Retardant Single Core Multi-Strand Flexible Wire

ZR-RV Flame Retardant Single Core Multi-Strand Flexible Wire

Voltage:
AC 300/500V (for 0.5–1.0mm² cross-sections)
AC 450/750V (for 1.5mm² and above)
Temperature Rating: 70°C
Conductor: Bare copper or tinned copper
Insulation: Flame-retardant PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Variety of colors available

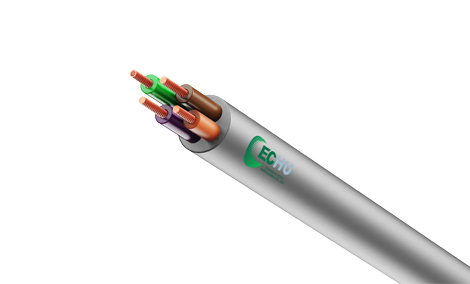

ZR-RVV Flame Retardant Flexible Cable

ZR-RVV Flame Retardant Flexible Cable

Voltage:
AC 300/300V (for 0.5–0.75mm², 2–3 cores)
AC 300/500V (for other sizes)
Temperature Rating: 70°C
Conductor: Bare copper or tinned copper
Insulation: Flame-retardant PVC
Outer Sheath: Flame-retardant PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Standard black (custom colors available)

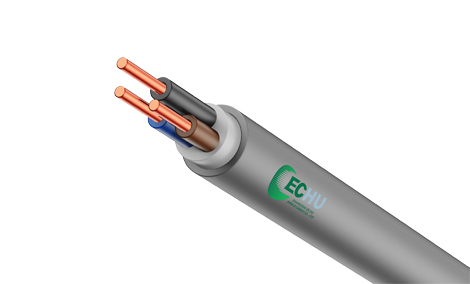

ZR-KVV Flame Retardant Control Cable

ZR-KVV Flame Retardant Control Cable

Voltage:
AC 450/750V
Temperature Rating: 70°C
Conductor: Bare copper
Insulation: Flame-retardant PVC
Outer Sheath: Flame-retardant PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Default black (custom colors available)
ZR-RVVP Shielded Flame Retardant Flexible Cable

ZR-RVVP Shielded Flame Retardant Flexible Cable

Voltage:
AC 300/300V
Temperature Rating: 70°C
Conductor: Bare copper or tinned copper
Insulation: Flame-retardant PVC
Braiding: Bare copper or tinned copper (optional)
Outer Sheath: Flame-retardant PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Default black (custom colors available)

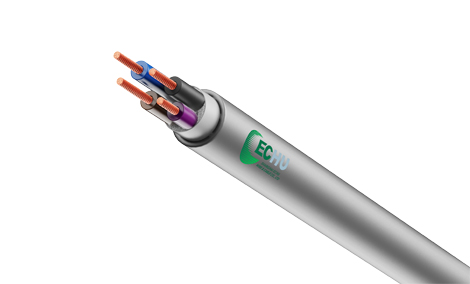

WDZ-YJY LSZH Flame Retardant Cable

WDZ-YJY LSZH Flame Retardant Cable

Voltage:
AC 0.6/1kV
Temperature Rating: 90°C
Conductor: Bare copper
Insulation: XLPE (Cross-Linked Polyethylene)
Outer Sheath: Low Smoke Zero Halogen Polyolefin (LSZH)
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Default black (custom colors available)
WDZ-YJY23 Steel Armored LSZH Flame Retardant Cable

WDZ-YJY23 Steel Armored LSZH Flame Retardant Cable

Voltage:
AC 0.6/1kV
Temperature Rating: 90°C
Conductor: Bare copper
Insulation: Cross-linked Polyethylene (XLPE)
Inner Sheath: Low Smoke Halogen-Free Polyolefin
Armor: Galvanized Steel Tape Armor
Outer Sheath: Low Smoke Halogen-Free Polyolefin
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Standard black (custom colors available)
WDZN-YJY Fire Resistant LSZH Flame Retardant Cable

WDZN-YJY Fire Resistant LSZH Flame Retardant Cable

Voltage:
AC 0.6/1kV
Temperature Rating: 90°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: Cross-Linked Polyethylene (XLPE)
Outer Sheath: Flame-Retardant Polyvinyl Chloride (PVC)
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Default black (custom colors available)
WDZN-YJY23 Steel Armored Fire Resistant LSZH Flame Retardant Cable

WDZN-YJY23 Steel Armored Fire Resistant LSZH Flame Retardant Cable

Voltage:
AC 0.6/1kV
Temperature Rating: 90°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: Cross-Linked Polyethylene (XLPE)
Inner Sheath: Low-smoke zero halogen polyolefin (LSZH)
Armor: Galvanized steel tape armor
Outer Sheath: Low-smoke zero halogen polyolefin (LSZH)
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Default black (custom colors available)
ZR-VVR Flame Retardant Flexible Cable

ZR-VVR Flame Retardant Flexible Cable

Voltage:
AC 0.6/1kV
Temperature Rating: 70°C
Conductor: Bare copper
Insulation: Flame-retardant PVC
Outer Sheath: Flame-retardant PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Default black (custom colors available)

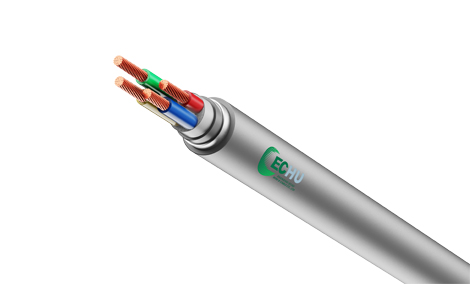

ZR-VV22 Steel Armored Flame Retardant Cable

ZR-VV22 Steel Armored Flame Retardant Cable

Voltage:
AC 0.6/1KV
Temperature Rating: 70°C
Conductor: Bare copper
Insulation: Flame-retardant PVC
Inner Sheath: Extruded or wrapped (optional)
Armoring: Galvanized steel tape
Outer Sheath: Flame-retardant PVC
Flame Retardance: IEC 60332-1-2 compliant
Color Options: Standard black (custom colors available)
ZR-YJV Flame Retardant Cable

ZR-YJV Flame Retardant Cable

Voltage: AC 0.6/1KV
Temperature Rating: 90°C
Conductor: Bare copper
Insulation: XLPE
Outer Sheath: Flame-retardant PVC
Flame Retardance: Meets IEC 60332-1-2
Color Options: Standard black (custom colors available upon request)

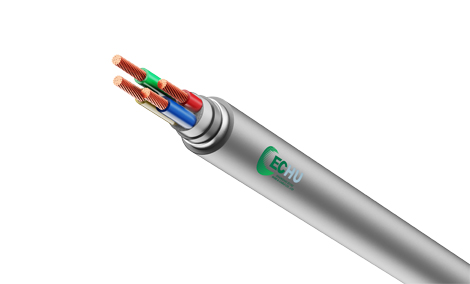

ZR-YJV22 Steel Armored Flame Retardant Cable

ZR-YJV22 Steel Armored Flame Retardant Cable

Voltage:
AC 0.6/1KV
Temperature Rating: 70°C
Conductor: Bare copper
Insulation: XLPE
Inner Sheath: Extrusion or wrapping (optional)
Armoring: Galvanized steel tape
Outer Sheath: Flame-retardant PVC
Flame Retardance: Complies with IEC 60332-1-2
Color Options: Standard black (custom colors available upon request)
ZR-YJVRP Shielded Flame Retardant Flexible Cable

ZR-YJVRP Shielded Flame Retardant Flexible Cable

Voltage:
AC 0.6/1KV
Temperature Rating: 90°C
Conductor: Bare or tinned copper
Insulation: XLPE
Braiding: Bare or tinned copper (optional)
Outer Sheath: Flame-retardant PVC
Flame Retardance: Compliant with IEC 60332-1-2
Color Options: Standard black (custom colors available upon request)
NH-YJV Fire Resistant Cable

NH-YJV Fire Resistant Cable

Voltage:
AC 0.6/1KV
Temperature Rating: 90°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: Cross-linked polyethylene (XLPE)
Outer Sheath: Polyvinyl chloride (PVC)
Flame Retardance: Compliant with IEC 60332-1-2
Color Options: Standard black (custom colors available upon request)
NH-YJV22 Steel Armored Fire Resistant Cable

NH-YJV22 Steel Armored Fire Resistant Cable

Voltage:
AC 0.6/1KV
Temperature Rating: 90°C
Conductor: Bare copper
Fire-resistant Layer: Mica tape
Insulation: XLPE (Cross-linked polyethylene)
Inner Sheath: Extruded or wrapped (optional)
Armoring: Galvanized steel tape armor
Outer Sheath: PVC (Polyvinyl chloride)
Flame Retardance: Complies with IEC 60332-1-2 standards
Color Options: Standard black (custom colors available upon request)
By Type
By Industry

Requirements for Low Smoke Zero Halogen Cable


Flame Retardant Low Smoke Zero Halogen Cable is an environmentally friendly cable, with the main feature being the minimal amount of smoke and the lack of harmful gases produced during a fire. Here are the main requirements for Flame Retardant Low Smoke Zero Halogen Cables:


  • Low Smoke: During a fire, the cable should produce minimal smoke to reduce harm to people and equipment.

  • Halogen-Free: Traditional cables use materials like PVC that contain chlorine, which releases toxic gases during a fire. However, halogen-free cables use materials that do not contain chlorine, thus avoiding the release of hazardous gases.

  • Good Flame Propagation Performance: Flame Retardant Low Smoke Zero Halogen Cables are not easily ignited or have a slow flame spread rate, effectively reducing the range of fire spread.

  • Good High-Temperature Resistance: Due to the use of environmentally friendly materials, these cables typically have excellent high-temperature resistance.
